Product Features
Product Description:
The coating adhesive, also known as conformal coating or 3C coating, is a low-viscosity flowing fluid at room temperature. This product is available in two types: UV-curable or moisture-curable. At room temperature, the adhesive cures through UV irradiation or moisture reaction, crosslinking to form a tough, dry surface. After curing, it provides excellent high and low temperature resistance, weatherability, electrical insulation properties, and outstanding 3C protection performance (moisture-proof, salt spray-proof, mildew-proof). It offers environmental and mechanical protection for printed circuit boards (PCBs) working in harsh environments.
The coating adhesive, also known as conformal coating or 3C coating, is a low-viscosity flowing fluid at room temperature. This product is available in two types: UV-curable or moisture-curable. At room temperature, the adhesive cures through UV irradiation or moisture reaction, crosslinking to form a tough, dry surface. After curing, it provides excellent high and low temperature resistance, weatherability, electrical insulation properties, and outstanding 3C protection performance (moisture-proof, salt spray-proof, mildew-proof). It offers environmental and mechanical protection for printed circuit boards (PCBs) working in harsh environments.
Application scope
Applications:
Primarily used for coating protection of PCBA (Printed Circuit Board Assembly).
Primarily used for coating protection of PCBA (Printed Circuit Board Assembly).
Product parameters

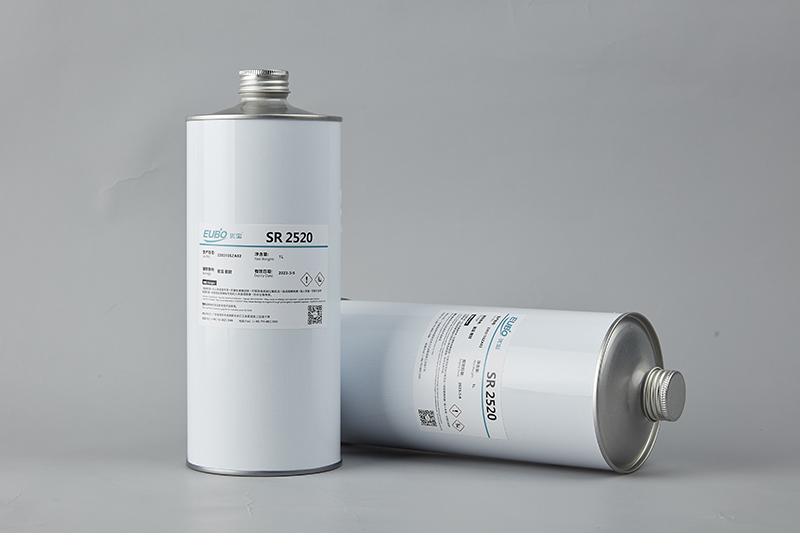

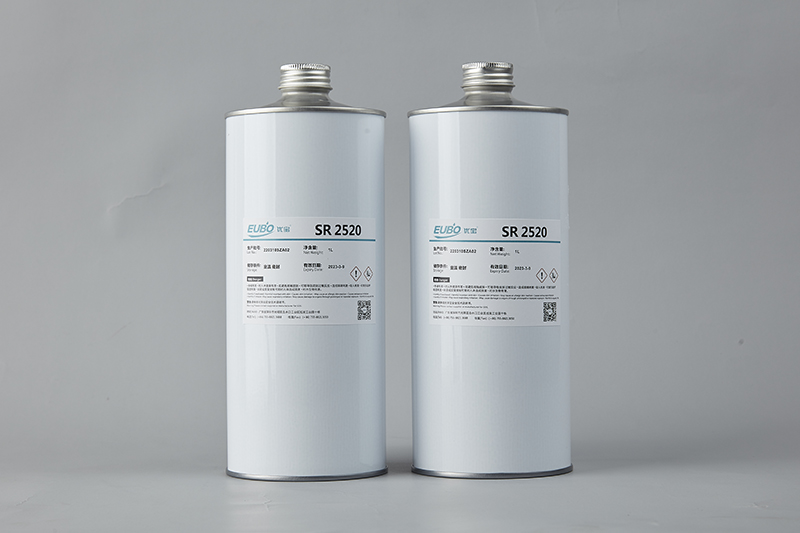

Technical Parameters of SR 2520
|
Product |
SR 2520 |
|
Application |
PCB protection, excellent high-temperature performance |
|
Appearance |
Transparent |
|
Viscosity |
350 mPa.s |
|
Curing Condition |
Tack free: 8 min @ 25°C |
|
Tg (Glass Transition Temperature) |
-50°C |
|
Density |
0.98 g/cm3 |
|
Storage Condition |
12 months @ 25°C |
|
Notes |
IPC-CC-830B |
